Myenergi Zappi EV Charger Installed in Chard

Completed Job Summary

EV charger installation completed at a residential property in Chard using a Myenergi Zappi GLO tethered charging system. The work included EV consumer unit installation, charger configuration, app connection and test charging following commissioning.

Service type

Home EV Charging

Location

Chard

Date completed

24/03/2026

Technician name

Finley Williams

System / Product

Myenergi Zappi GLO 7 kW Tethered EV Charger

Customer report

The customer requested installation of a Myenergi Zappi GLO Black tethered EV charger with app control, tariff auto-charge capability, O-PEN protection and solar charging functionality. The installation scope included dedicated EV charging protection components, associated cabling and integration with the Myenergi mobile application. The customer was also preparing for a smart meter installation to support tariff configuration within the charging system.

Diagnosis & Technical Assessment

The installation scope included a 7 kW tethered EV charging system with integrated app control, dynamic load protection and solar charging compatibility. The selected Myenergi Zappi GLO charger included O-PEN protection and tariff charging functionality as part of the configured system setup.

The electrical installation included an EV consumer unit fitted with an A-Type DP B40 RCBO and SPD, together with associated meter tail components, terminal blocks, and 6 mm² 3 Core Tuf Sheathed cable. Following installation, the charger was configured using the installer application and linked to the customer’s Myenergi account.

A test charge was completed during commissioning to confirm EV charging operation. The installation was configured so the charging system would not drain the battery. The customer was shown the Myenergi application with the EV connected and operational. Smart tariff configuration remained pending until completion of the customer’s smart meter installation.

Solutions delivered

The completed works included installation of a Myenergi Zappi GLO 7 kW tethered EV charger together with a dedicated EV consumer unit and associated electrical protection components. Cabling, meter tail components, terminal blocks and charger connections were installed as part of the completed charging system setup.

The selected charging system provided dynamic load protection, app-based charging control, solar charging compatibility and tariff-based charging functionality. The installation also included O-PEN protection integrated within the charger system specification.

The charger was configured using the installer application and connected to the customer’s Myenergi account. A test charge was completed following commissioning to confirm the charging operation. The customer was shown how to access and use the Myenergi application while awaiting smart meter setup for tariff configuration.

Tools, Parts & Systems Used

  • Myenergi Zappi GLO 7 kW tethered EV charger

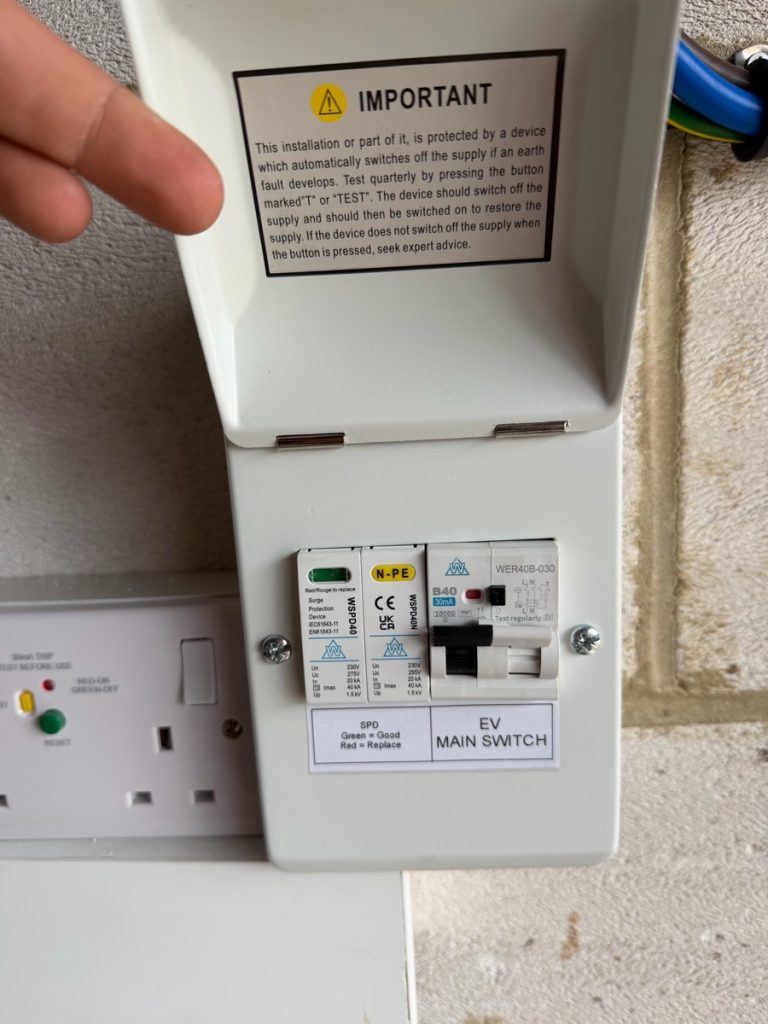

  • EV consumer unit with A Type DP B40 RCBO and SPD
  • 6 mm² 3 Core Tuf Sheathed cable
  • Proteus terminal blocks
  • Myenergi app

Outcome & Results

The EV charging installation was marked complete on 24/03/2026. The charger was installed, configured and connected to the customer’s Myenergi account. Test charging was completed successfully, and the charging system was configured to prevent battery drain during operation. SC and certification documentation were uploaded following completion. Smart tariff configuration remained dependent on the customer’s smart meter installation.

Repair vs Replacement

This project involved installing a new EV charging system rather than replacing an existing charger. The selected charging setup combined EV charging functionality, dynamic load protection, O-PEN protection, and solar charging compatibility into a single integrated system. Dedicated EV protection components and consumer unit equipment were installed to support the charging load requirements. The final system setup included application commissioning, charging verification, and a customer demonstration to confirm operational charging functionality before completion.
