External Lighting Review Completed in Farrington Gurney
Completed Job Summary
Lighting infrastructure review completed for clubhouse and external grounds areas in Farrington Gurney. Existing lighting circuits, supply routes, duct access points, and proposed installation positions were assessed alongside aerial site photography and layout documentation.
Service type
Lighting Review
Location
Farrington Gurney, Bristol
Date completed
23/01/2026
Technician name
Harrison Weekes
System / Product
External lighting infrastructure
Customer report
The customer requested a review of additional lighting requirements across multiple external areas of the site, including clubhouse access roads, patio areas, direction signage, pond areas, cabin lighting, and pathway routes. Existing lighting infrastructure was reviewed to determine suitable supply arrangements for simultaneous operation with current installations. Proposed lighting positions and infrastructure routes were assessed during site visits and aerial photography.
Diagnosis & Technical Assessment

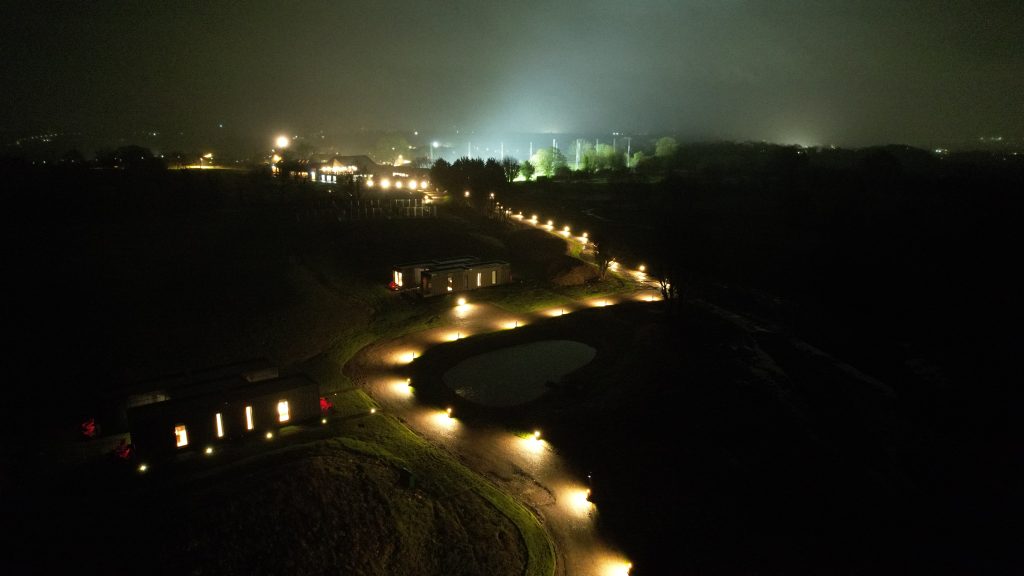

Site attendance was completed to review existing external lighting infrastructure and assess suitable supply arrangements for proposed lighting additions across the property. Drone aerial photography was used to document the surrounding layout and to support positioning assessments for bollard, flood, swan-neck wall, pond, and cabin lighting systems.
Existing bollard circuits and lighting supplies were reviewed to determine whether simultaneous switching could be achieved using the current installation. The nearest bollard joint and existing contactor enclosure were identified as potential supply connection points for the proposed bollard extension works. Existing duct systems and accessible manholes were also reviewed for potential cable routing to illuminated direction signage.

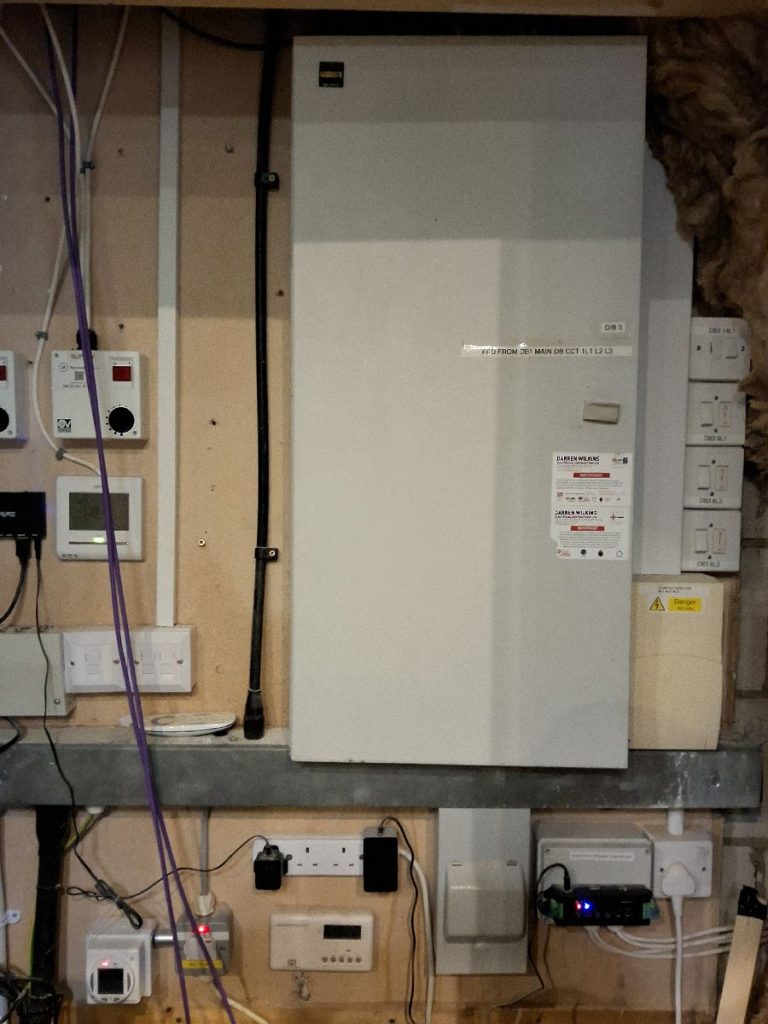

The clubhouse patio area was assessed using the existing consumer unit arrangement, in which a spare way was identified to supply additional swan-neck lighting fittings. Existing photocell-controlled lighting systems were referenced for coordinated operation of the proposed additions.
Cable routing methods were considered for underground SWA installation, including pathway-crossing options and trench routes around landscaped areas. Existing floor lighting supplies were also reviewed for the proposed disabled-ramp downlighting installations.
Solutions delivered
A structured lighting review and proposal assessment was completed, covering multiple external lighting upgrade areas across the site. Proposed layouts were prepared for bollard lighting extensions, patio wall lighting, directional flood lighting, pond perimeter lighting, cabin lighting, and disabled ramp downlights.
The proposed lighting arrangements were designed to integrate with existing lighting circuits to maintain simultaneous operation and coordinated switching across the site. Existing infrastructure was prioritised where suitable supply points and control systems were already available. Proposed underground cable installations specified SWA cabling to be installed below finished ground level, with warning tape protection above buried services.
Alternative routing methods were considered when pathways or landscaped areas restricted direct cable installation. Existing duct systems, contractor enclosures, consumer units, and photocell controls were incorporated into the proposed infrastructure planning where suitable to ensure operational continuity.
Aerial site imagery and lighting position documentation were prepared and issued to the customer together with initial fitting suggestions for further review and confirmation.
Tools, Parts & Systems Used
- Drone
- Bollard lighting
- SWA cabling
- RCBO devices
- Photocell lighting system
- Swan neck wall lights
Outcome & Results
The lighting review documentation was completed and issued to the customer together with aerial site photographs and proposed installation layouts for the identified lighting upgrade areas. Existing lighting infrastructure, supply arrangements, and cable routing options were assessed to support future installation planning across the clubhouse grounds and surrounding external areas.
This job record is derived from first-party technician notes and internal job management systems (i.e. SimPRO).
All work was carried out in accordance with relevant Australian Standards and safety requirements.
Repair vs Replacement
Lighting upgrade projects involving existing external infrastructure often require assessment of current switching arrangements, cable routes, and available supply points before additional systems are installed. Reviews commonly focus on whether existing lighting circuits, consumer units, photocells, and duct systems can support expansion works without requiring complete infrastructure replacement.
Where suitable infrastructure is already available, extending existing systems may enable coordinated operation and reduce the need for additional installations. In larger external environments, underground SWA routing, pathway crossings, and access limitations can influence the final installation approach and equipment positioning.
